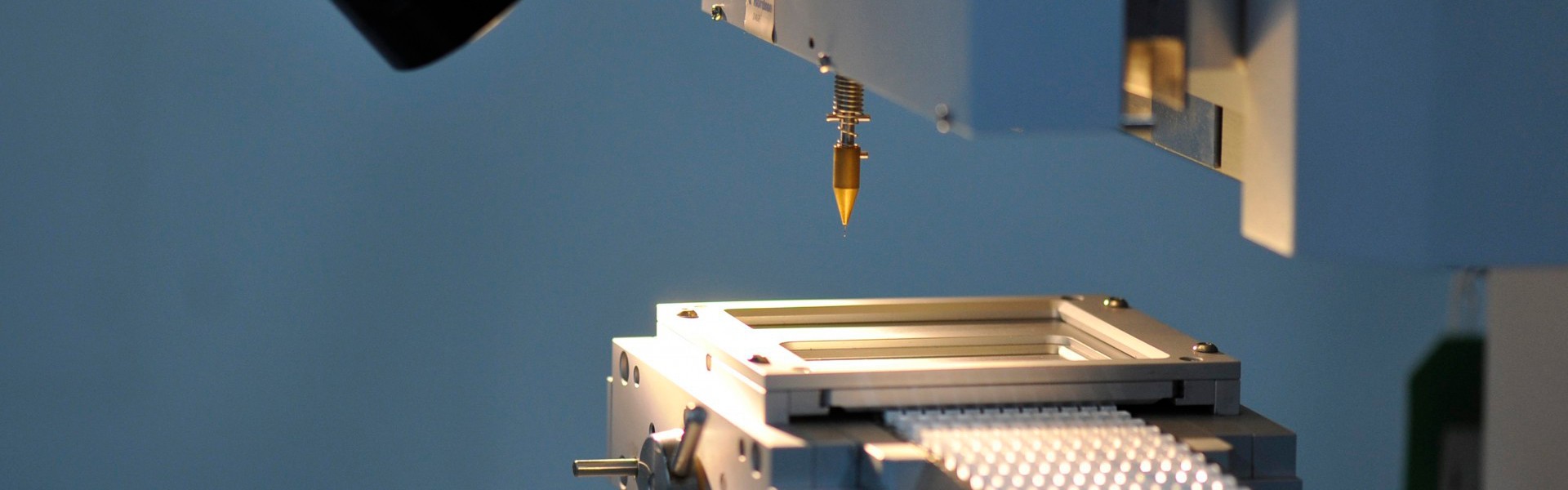

| 汽车产品可靠度测试（执行AEC-Q102标准） | ||||||||
| 序号 NO | 简称 Abbreviation | 测试项目 Test Item | 测试标准 Test Standard | 测试条件 Test Condition | 测试周期 Test Period | 测试设备 Test Equipment | 样品数量Sample Quantity | 接受标准Acceptance Criteria |
| 测试组A-加速环境应力测试 | ||||||||
| 1 | PC | 预处理 Pre-conditioning | JEDEC JESD22-A113 | 125℃/24 hrs, 60℃/60%RH, 120hrs ,3X reflow | 144 hrs | 恒温恒湿机 Humidisat Tester 回流焊机 Reflow Oven | 312pcs | 0缺陷 Zero defect |
| 2 | WHTOL1 | 高温高湿通电试验1 Wet HighTemperatureOperating Life1 | JEDEC JESD22-A101 | Ta=85℃,RH=85% 30min on/30min off; | 1000 hrs | 恒温恒湿机 Humidisat Tester | 26pcs | 0缺陷 Zero defect |
| 3 | WHTOL2 | 高温高湿通电试验2 Wet HighTemperatureOperating Life2 | JEDEC JESD22-A101 | Ta=85℃,RH=85% | 1000 hrs | 恒温恒湿机 Humidisat Tester | 26pcs | 0缺陷 Zero defect |
| 4 | PTC | 温度循环通电试验 Power Temperature Cycling | JEDEC JESD22-A105 | Ta=-40℃/85℃、100℃、125℃ 5min on/5min off; Convert for 10 minutes and stay for 20 minutes | 1000 cycles | 冷热冲击机 Temperature shock testing chamber | 26pcs | 0缺陷 Zero defect |
| 5 | TC | 温度循环 Temperature Cycling | JEDEC JESD22-A104 | Ta=-40℃/85℃、100℃、110C、125℃、150℃ Conversion time < 10 seconds, stay time 15 minutes | 1000 cycles | 冷热冲击机 Temperature shock testing chamber | 26pcs | 0缺陷 Zero defect |
| 测试组B-加速寿命测试 | ||||||||
| 6 | HTOL1 | 高温工作寿命1 High Temperature OperatingLife1 | JEDEC JESD22-A108F-2017 | Ta=Tjmax 85℃、105℃、125℃ The maximum current corresponding to the maximum current value in the reduction curve under the highest allowable operating temperature condition | 1000 hrs | 高温试验机 High Temperature Tester | 26pcs | 0缺陷 Zero defect |
| 7 | HTOL2 | 高温工作寿命2 High Temperature OperatingLife2 | JEDEC JESD22-A108F-2017 | Ta=Tjmax 85℃、105℃、125℃ Under the rated driving current condition, based on the maximum temperature corresponding to the reduction curve | 1000 hrs | 高温试验机 High Temperature Tester | 26pcs | 0缺陷 Zero defect |
| 8 | PLT | 脉冲寿命测试 Pulsed Life | JEDEC JESD22-A108F-2017 | Ta=55℃, Current: Refer to the specification for pulse current, with a pulse width of 100 seconds and a duty cycle of 3%. | 1000 hrs | 高温试验机 High Temperature Tester | 26pcs | 0缺陷 Zero defect |
| 测试组C-封装组装整合测试 | ||||||||
| 9 | DPA | 破坏性分析 Destructive Physical Analysis | AEC-Q102:2020 | A random sample of the experiments that have been successfully completed The project's materials are provided along with reference pictures. | 1 day | 显微镜 Microscope | 16pcs | 0缺陷 Zero defect |
| 10 | PD | 尺寸测量 Physical Dimension | JESD22-B100B-2003 | Measure the external physical dimensions of the LED by Microscope | 1 day | 显微镜 Microscope | 10pcs | 0缺陷 Zero defect |
| 11 | WBP | 邦定线拉力 Wire Bond Pull | MIL-STD-750-2A w/CHANGE 4:2020 | Test Speed: 300 μm/s | 1 day | 推拉力测试机 Thrust Tensile tester | 10pcs | Cpk > 1.67 |
| 12 | WBS | 邦定线推力 Wire Bond Shear | JEDEC JESD22-B116B-2017 | Shear Speed: 300 μm/s，Shear Height: 2 μm | 1 day | 推拉力测试机 Thrust Tensile tester | 10pcs | Cpk > 1.67 |
| 13 | DS | 晶片推力 Die Shear | MIL-STD-750-2A w/CHANGE 4:2020 | Shear Speed: 300 μm/s，Shear Height: 50 μm | 1 day | 推拉力测试机 Thrust Tensile tester | 5pcs | Cpk > 1.67 |
| 14 | DEW | 凝露 Dew | AEC-Q102-001:2020 | Rated current is connected, 65hrs | 3 day | 恒温恒湿机 Humidisat Tester | 26pcs | 0缺陷 Zero defect |
| 15 | TR | 热阻测量 Thermal resistance | JESD51-50-2012 | Test the thermal resistance value of heat conduction from the chip to the baseplate. | 1 day | 热阻测试机 Heat resistance testing machine | 10pcs | 0缺陷 Zero defect |
| 16 | SD | 可焊性 Solderability | EIA/IPC/JEDEC J-STD-002E-2017 | Test type:Pb-free solderability Pretreatment Conditions:155℃,4 hours Oven:250℃,3min | 1 day | 回流焊机 Reflow Oven | 10pcs | 0缺陷 Zero defect |
| 18 | H2S | 硫化氢气体腐蚀 Hydrogen Sulphide | IEC60068-2-43:2003 | Ta=40℃ RH=90%, H2S concenteation:15x 10-6 | 336 hrs | 硫化测试机 Sulfurization testing machine | 26pcs | 0缺陷 Zero defect |
| 19 | FMG | 混合气体腐蚀 Flowing Mixed Gas | IEC 60068-2-60:2015 | Ta=25℃ RH=75% H2Sconcenteation:10 × 10-9 S02concenteation:200 × 10-9 NOconcenteation:200 × 10-9 CI2concenteation:10 × 10-9 | 500 hrs | 混合气测试机 Hybrid gas testing machine | 26pcs | 0缺陷 Zero defect |
| 20 | BF | 板弯曲 Board Flex | AEC-Q102-002-Rev-2020 | Testing speed:50mm/min Span:90mm Radius of loading and supports edge:10mm Compress 2mm and keep 5s Status:Powered on | 1 day | 折弯测试机 Bending testing machine | 10pcs | 0缺陷 Zero defect |
| 测试组D-光电特性确认测试 | ||||||||
| 21 | EV | 外观检查 External Visual | JEDEC JESD22-B101C-2015 | Visual inspection | 1 day | 光学显微镜(>100x) Optical microscope | 702pcs | 0缺陷 Zero defect |
| 22 | TEST | 光电参数检查 Pre-and Post-Stress Electrical and Photometric Test | AEC-Q102-Rev_A-2020 | Measure Vf,Φv,Cx,Cy,at | 1 day | 积分球测试仪 Integral ball tester | 702pcs | 0缺陷 Zero defect |
| 23 | PV | 参数验证 Parametric Verification | Client's specification | Test Temp,:-40℃,100℃ Test all parameters | 1 day | 电源测试仪 Power tester | 30pcs | 0缺陷 Zero defect |
| 24 | HBM | 静电人体模式 Electrostatic Discharge Human Body Model | ANSI/ESDA/JEDEC JS-001-2017 | HBM≥8000V | 1 day | 抗静电测试仪 Antistatic tester | 30pcs | 0缺陷 Zero defect |
| 25 | CDM | 静电器件模式 Electrostatic Discharge Charged Device Model | AEC-Q101-005-REV-A-2019 | CDM≥800V | 1 day | 抗静电测试仪 Antistatic tester | 30pcs | 0缺陷 Zero defect |
| 测试组E-封装凹陷整合测试 | ||||||||
| 26 | VVF | 振动试验 Vibration Variable Frequency | JEDEC JESD22-B103B.01:2016 | Frequency Range:(20Hz-2000Hz) Amplitude(p-p): 1.5 mm (20Hz-80Hz) Acceleration:20g (80Hz-2000Hz)Sweep Rate:4Min/cycle Orientation: Xaxis，Yaxis，Zaxis 4cycles | 1 day | 振动测试仪 Vibration measurement instrument | 30pcs | 0缺陷 Zero defect |
| 27 | MS | 机械冲击试验 Mechanical Shock | JEDEC JESD22-B110B01:2019 | Pulse Shape:Half-sine Acceleration:1500g，Pulse Width:0.5 ms Orientation: Xaxis，Yaxis，Zaxis Shock Times: 5times/direction,total 30 times | 1 day | 冲击测试仪 lmpact testing apparatus | 30pcs | 0缺陷 Zero defect |
